Our Products
Fire-Rated Enclosures

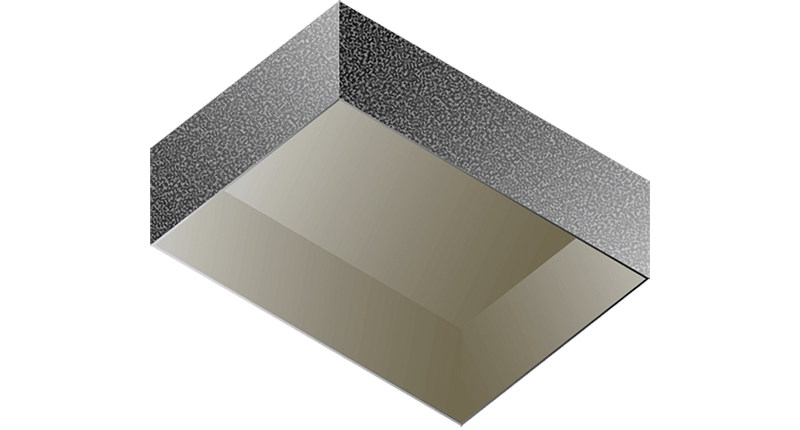

Product Number
FN-R-14.25-20.25-6.5
Dimensions
14.25” x 20.25” x 6.5”
Description
- Patent pending composite enclosure for shallow depth applications.
- Mounting between joists or trusses.
- Enclosures are secured in place with hanger bars when installed over downlighting or speaker installation in T-Grid suspended ceiling systems.
- Read more about our composite series.

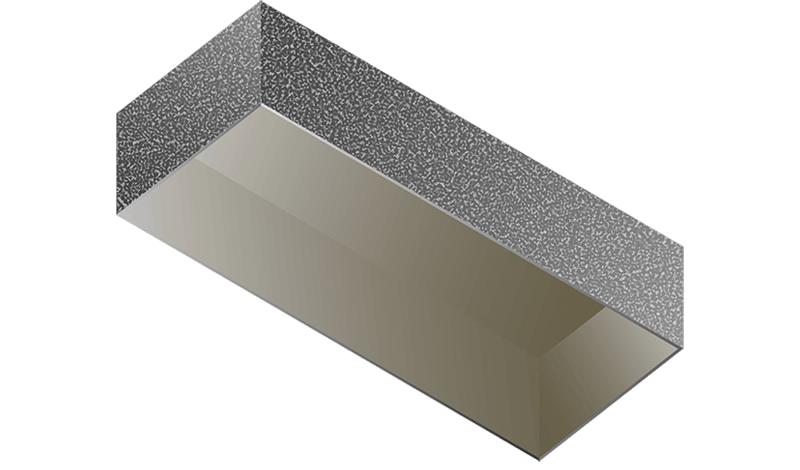

Low-Voltage Downlighting
Product Number
Dimensions
8” x 20.25” x 5”
Description
- Patent pending composite enclosures are designed to provide required fire rated membrane penetration
protection for low-voltage downlighting. - Enclosures are placed and secured mechanically or with hanger bars between joists or trusses.
- This product is compliant with Chapter 7 Section 714 of the International Building Code: All 2-hour I/C rated
slimline / wafer style downlighting fixtures installed in fire rated assemblies are required to pass the ASTME 119 / UL 263 testing requirements. - Read more about our composite series.

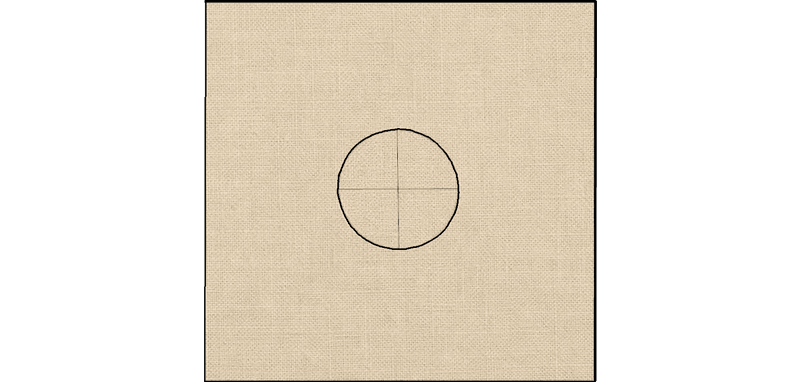

Product Number
FN 7.5-7.5
Dimensions
7.5” x 7.5”
Description
- FRPS patent pending Gap-Fill Gasket is engineered for shower mixing valve installations in fire rated vertical wall assemblies.
- The Gap-Fill Gasket is applied to surface of the wet-side of the one hour rated vertical wall fire rated assembly around the projecting shower valve stem prior to the installation of the Durock cement board.
- Read more about our composite series.

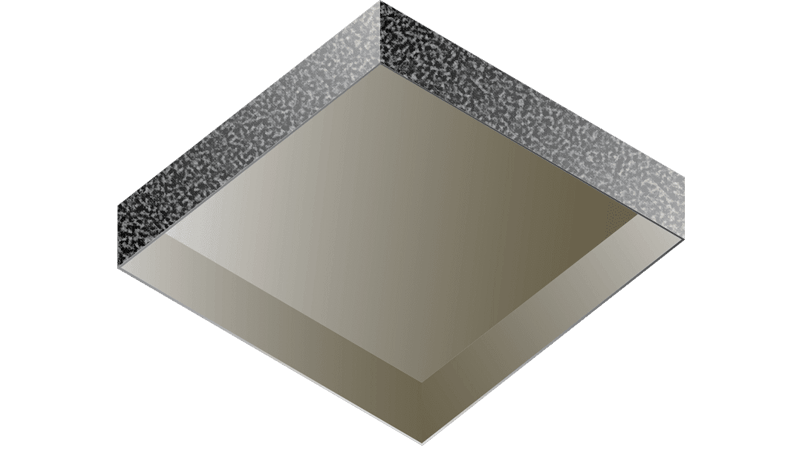

Product Number
Dimensions
24” x 24” x 5”
Description
- FR rated, moisture resistant, odorless, non-combustible, chemically stable, mold / mildew / fungus resistant and anti-microbial preventive.
- FRPS patent pending composite enclosures are light weight (24 X 48 less than 2 pounds) installs over fixture within the same suspended ceiling T-Grid space.
- Approved to ASTM E84 Class A and ASTM E119 / UL 263 fire rating test.
- Enhanced properties tested ASTM G21, ASTM C518, ASTM 423.
- Approved in UL D, G, J, L, P, R, Series listed assemblies.
- Compliant for use in Healthcare, Cleanroom, Mission.
- Critical Infrastructure and Chicago Plenum applications.
- Read more about our composite series.

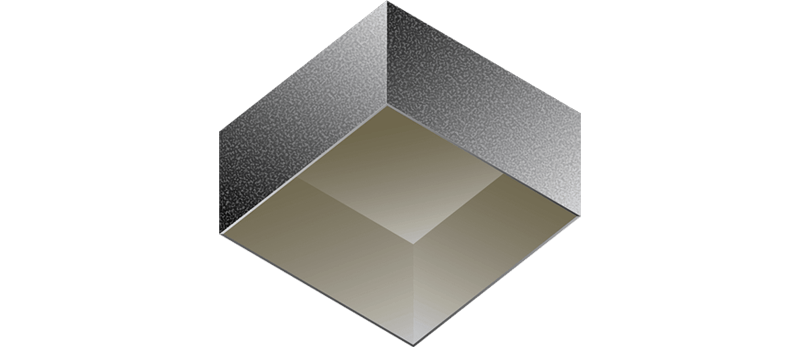

Recessed Lighting & Speaker
Product Number
FN-R-12-12-6.5
Dimensions
12” x 12” x 6.5”
Description
- Patent pending composite enclosure for shallow depth applications.
- Mounting between joists or trusses.
- Enclosures are secured in place with hanger bars when installed over downlighting or speaker installation in T-Grid suspended ceiling systems.
- Read more about our composite series.

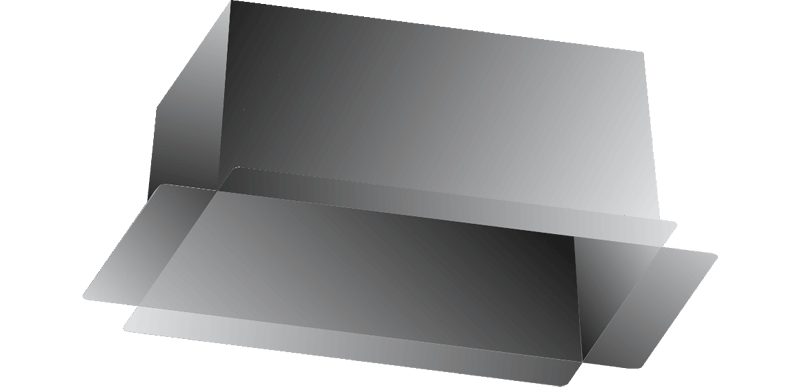

Product Number
Dimensions
12” x 20” x 9”
Description
- FRPS engineered enclosures have been tested and design listed compliant for use in 1- and 2-hour horizontal floor / ceiling and roof / ceiling fire rated assemblies.
- Metal part numbers reflect inside cavity dimensions.
- Compatible for use with Non-I/C and I/C rated recessed downlights, recessed devices, and in-ceiling speakers, maintaining the fire resistance rating of the fire rated assembly.

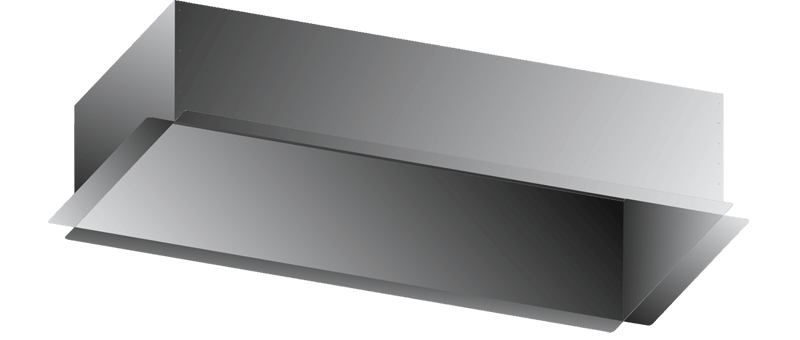

Product Number
FN-Z 26-50-10.5
Dimensions
26” x 50” x 10.5”
Description
- Mini split cassettes and fan coil units.
- 1-hour fire rated enclosure with integrated mounting flanges.
- Available upon request, FRPS approved fire rated makeup air and exhaust duct venting kit if required.
- Custom enclosure sizes available upon request.

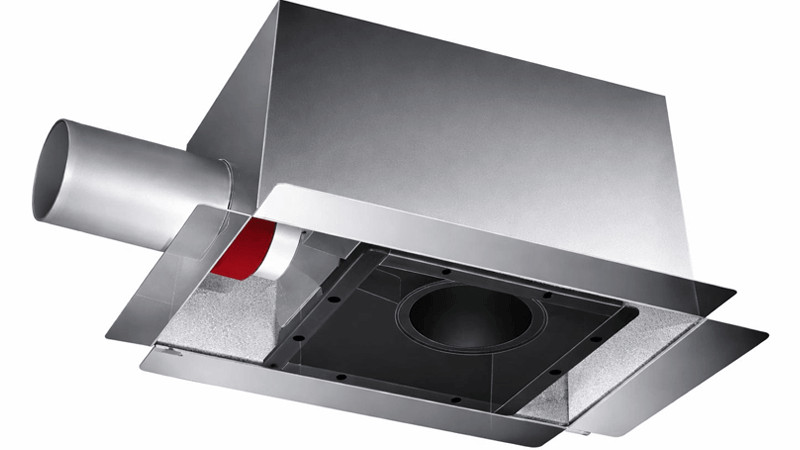

Product Number
FN-Z 12-20-9 EXH
Dimensions
12” x 20” x 9”
Description
- 1-hour fire rated enclosure is engineered, tested, and listed compliant as an alternative to a radiation damper.
- The 2013 UL / INTERTEK lab test report states radiation dampers are not acceptable for exhaust fan penetrations in typical wood frame construction, floor / ceiling, and roof / ceiling fire rated assemblies unless they are part of a rare, specially-tested combination.
Product Number

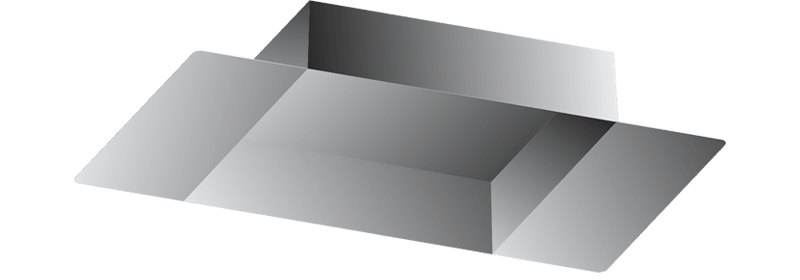

FN-Z 14-14-3
Dimensions
14” x 14” x 3”
Description
- 1-hour floor / ceiling fire rated assembly enclosure (no liner material required).
- Compatible with in-ceiling speakers, slimline /wafer style LED downlighting fixtures and other recessed devices.

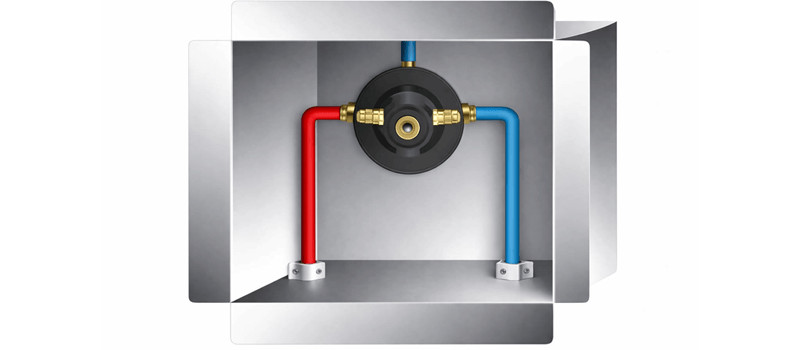

Product Number
FN-Z 14-14-3 S/V
Dimensions
14" x 14" x 3"
Description
- 1- and 2-hour fire rated recessed Tub/Shower mixing valve.
- Approved in wood, steel and C/H channel stud wall and shaft wall assemblies.
- Bearing wall approved.
- F/T and hose stream rated.
- Custom enclosure sizes available upon request.
Product Number
Please Select:
FN-R-14.25-20.25-6.5
Dimensions
14.25" x 20.25" x 6.5"
Description
- Patent pending composite enclosure for shallow depth applications.
- Mounting between joists or trusses.
- Enclosures are secured in place with hanger bars when installed over downlighting.
- Read more about our composite series.
Maximize & Customize
FRPS only sells highly-rated and fully-compliant products. We are also expert at customizing enclosures to solve your trickiest applications. Ask us, challenge us.
